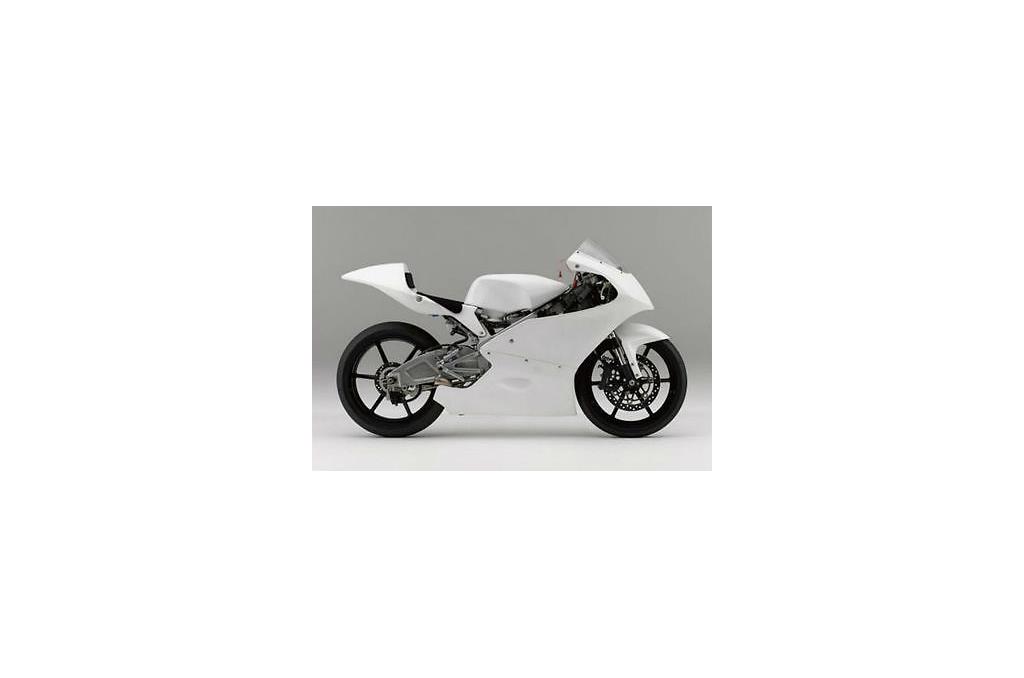

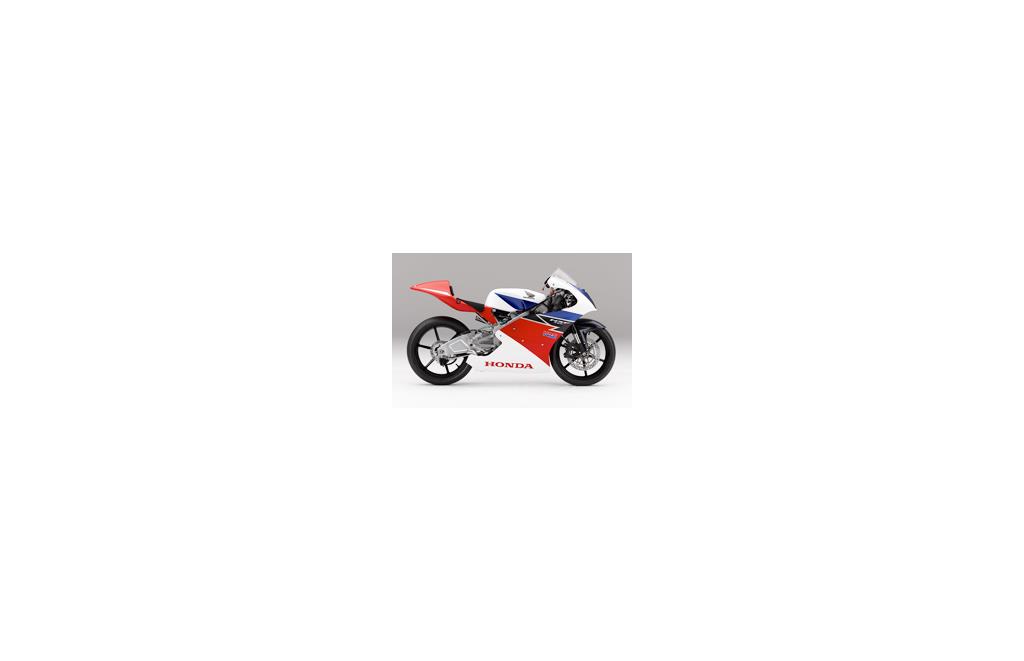

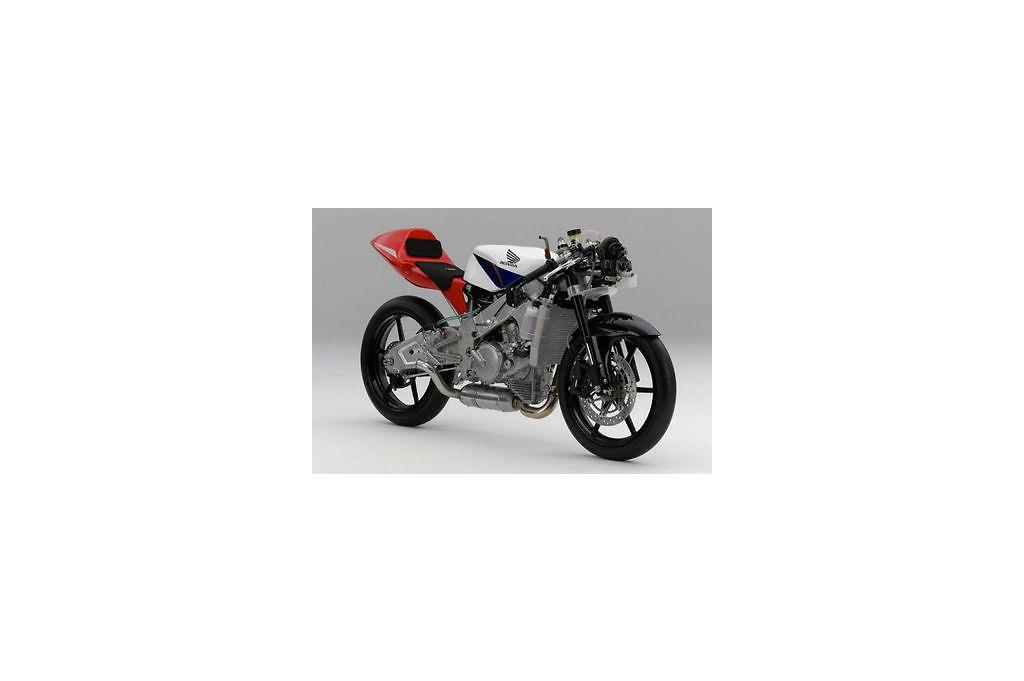

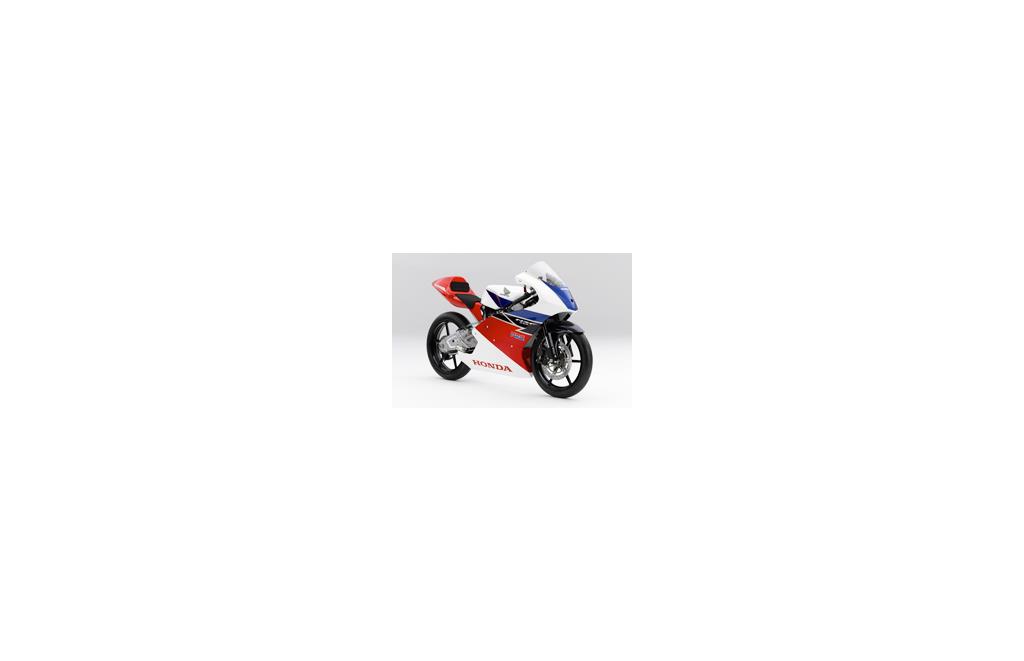

NSF250R Moto 3

Padgett’s are the only Official UK distributor for the Honda
HRC NSF250R Moto 3 Machine.

Power Unit

The 249cc DOHC liquid cooled single cylinder engine is
designed under the concept Light weight, Compact, High-Output and
High-Efficiency.
A higher charging efficiency has been achieved by positioning the intake port
on the front side of the cylinder and the exhaust at the rear. The cylinder has
an inclining angle of 15 degrees to the rear which contributes to the
concentration of mass.
Positioning the balancer-shaft above the crank-shaft has made the unit compact
in overall length.



Frame and Body

Although based on the RS125, the frame has a totally revised
stiffness and balance for the new four-stroke unit. The new framework made of
high rigidity, light weight 7000 series pressed aluminum alloy, provides
optimized flexibility and superb riding control.
Revised concentration of mass has resulted in lighter weight and extra room to
position a five liter air-box(excluding the oil catch tank capacity).

Model name

NSF250R

Model type

MR03

Overall length × Overall width × Overall height(m)

1.809×0.560×1.037

Wheelbase(m)

1.219

Ground clearance(m)

0.107

Seat height(m)

0.729

Caster angle(degree)

22°36

Curb weight(kg)

84

Fuel tank capacity(l)

11

Engine type

liquid-cooled 4-stroke DOHC single cylinder

Displacement(cm3)

249.3

Bore × Stroke(mm)

78.0×52.2

Maximum power(kW/rpm)

35.5/13,000

Maximum torque(N?m/rpm)

28.0/10,500

Oil Capacity (ENG OIL/T.M OIL) (l)

1.27/0.55

Transmission

Type

Constant mesh

Gear ratio

1st

1.875

2nd

1.524

3rd

1.304

4th

1.167

5th

1.077

6th

1.000

Reduction gear ratio

Primary

2.952

Secondary

2.333

Devices (Intake)

IACV

Fuel supply system

PGM-FI

Ignition type

Full-transistor

Clutch type

Wet multiplate

Lubricating type

Semi-Dry Sump

Tire size

Front

90/580R17

Rear

120/600R17

Rim size

Front

2.50-17

Rear

3.50-17

Brake

Front

Type

Hydraulic disk

Diameter

f296

Rear

Type

Hydraulic disk

Diameter

f186

Suspension

Front

Inverted telescopic

Rear

Pro-link suspension system

Frame type

Aluminum twin tube
